Machine Specifications
Item Specifications
Model K1325
X-Y-Z Axis Working Area 1300*2550*200 mm
Machine Size 3120*1960*1700 mm
Repositioning Resolution 0.02 mm
X-Y Movement Rack and pinion, gear drive
Z Movement Ball Screw drive
Guide Linear *20 square
Spindle 6 kw
Spindle Speed 18000-24000 rpm
Inverter Power 7.5 kw
Working Voltage AC380v/50-60Hz, 3-phase
Command Code G code
Computer Interface USB 2.2
Collet ER32
Controls DSP (Digital Signal Processor)
Packing Dimensions 3000*2000*1870 mm, 1500 kgs

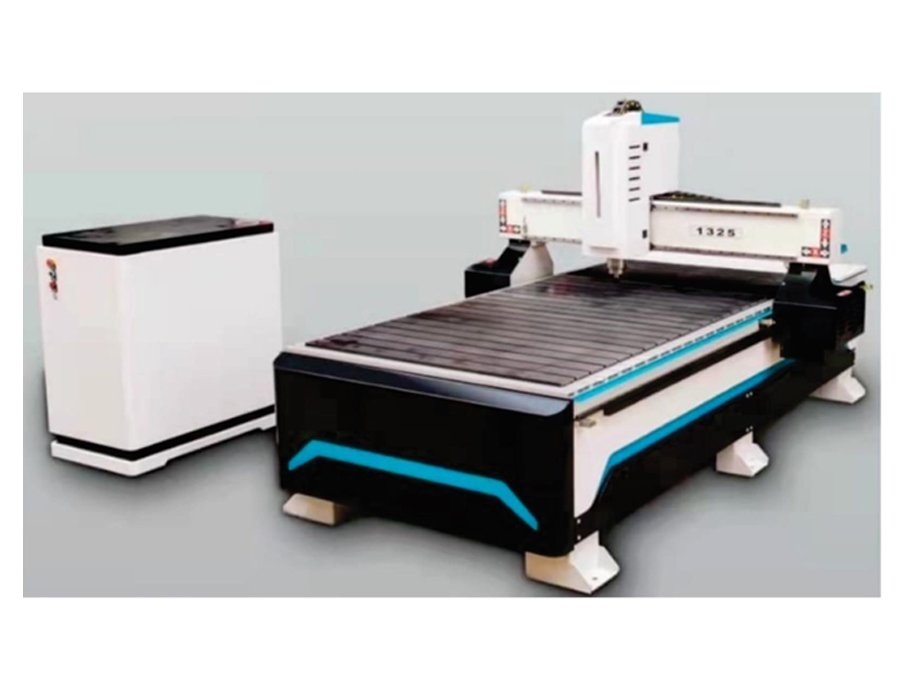

CNC Router - 1325 - 6KW Spindle - Servo Drive & Motor

CNC ROUTER MACHINE
CNC Router Applications

Architectural Millwork.

Cabinet Making.

Sign Making.

Plastic Fabrication.

Metal Fabrication.

Foam Cutting.

Furniture Making.

General Woodworking.

A CNC router can be used to produce items such as door carvings, interior and

exterior decorations, wood panels, sign boards, wooden frames, mouldings, musical

instruments, furniture. In addition, they see use in industry in the thermoforming of

plastics by automating the trimming process.
