| Technical Specification |
Unit |
MX5117B |
| Working Table Dimension |
mm |
1130*670 |
| Max. Working Thickness |
mm |
120 |
| Spindle Diameter |
mm |
35 |
| Spindle Speed |
r/min |
6000-10000 |
| Voltage / Power |
V / kW |
380V / 4kW |
| Overall Dimension |
mm |
1130*680*1050 |

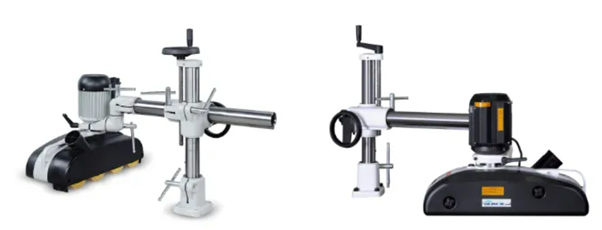

POWER FEEDER
| Technical Specification |
Unit |
MX48 |
| Feeding Speed |
m/min |
3.5-32 |
| Motor Power |
HP |
1 |
| Roller Size |
mm |
120*60 |
| Roller Suspension |
mm |
25 |
| Net Weight |
kg |
60 |
| Gross Weight |
kg |
64 |
| Packing Size (Feeder) |
mm |
740*315*540 |
| Packing Size (Stand) |
mm |
750*35*290 |
| Voltage |
|
380V, 50Hz or Customized |
